Product Introduction

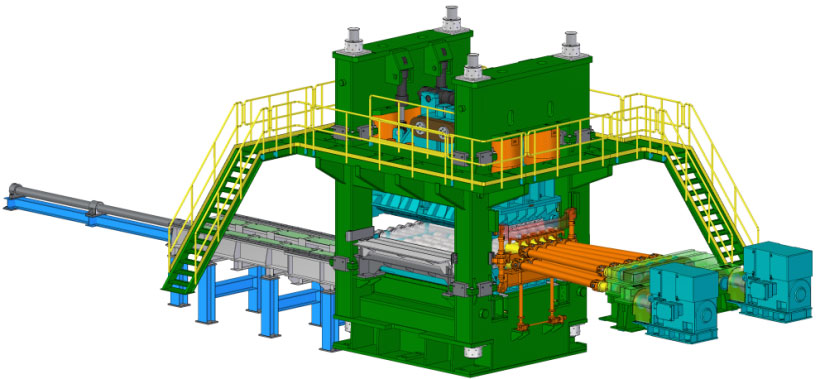

Ablyy’s Fifth-generation High-Performance High-Thrust Leveler is a world-leading 6,000-ton class leveling solution incorporating over a dozen proprietary technologies.
? Pre-Stressed Interlocking Frame:
Enhances frame dynamic stiffness by 300% compared to conventional pre-stressed designs.
Features large-section M260-M280 pre-stressed tie rods locked via interlocking mechanisms, ensuring sustained rigidity and superior straightening performance.
? Ultra-High Density Backup Roll System:
Boosts roll system load capacity by 250%-350%, achieving over 4,600 tons of allowable straightening force for 3,500mm hot levelers.
Doubles both load capacity and service life through increased backup roll rows and 200% higher roll surface contact.
? Independent Side Roll Adjustment:
Maintains plate flatness with load-bearing, independently controlled entry/exit side rolls.
Real-time adjustment feedback on operator panels with safety limits and protective functions.
? Hydraulic Rotary Clamping Device:
Enables rapid roll change via bidirectional telescopic rotation with integrated hydraulic locking.
Provides uniform high clamping force for secure, efficient roll engagement/disengagement, minimizing downtime.

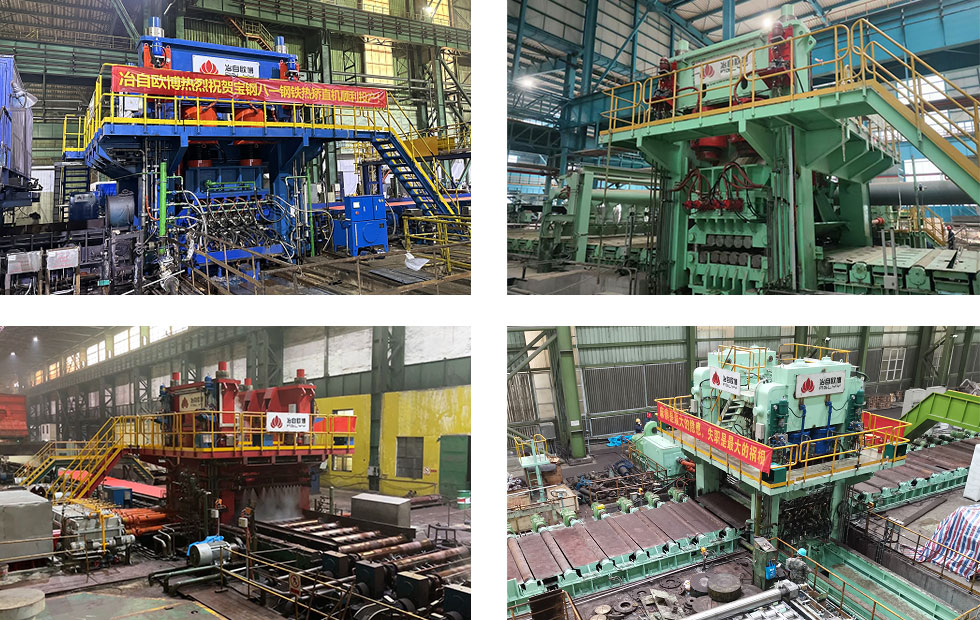

Application Showcase
