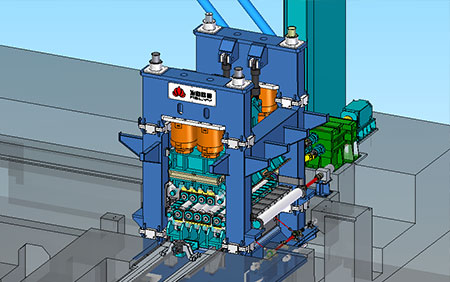

Fifth-Generation Powerful Warm Leveler of Heavy Plates
Product details
Product Introduction
Ablyy’s original fifth-generation high-performance powerful warm leveler employs over a dozen proprietary technologies, including an ultra-dense backup roll system with high load capacity, prestressed interlocking frame, load-adjustable side rolls, hydraulic rotary clamping device, and multi-point bending roll mechanism. It debuts the world’s leading 6000-ton class powerful leveler complete equipment, combining an intelligent monitoring platform with precise leveling model control and a self-learning, self-iterative intelligent leveling expert system for fully automatic, standardized production. Energy-efficient and effective, it relieves residual stress in steel plates from rolling and cooling processes, enhances mechanical property uniformity and stability, supports high-strength steel (≥690MPa) and NM series materials, improves production efficiency and finished product rate, and drives the upgrade and replacement of medium/heavy plate levelers.
Product Advantages
? Superior Mechanical Performance: Designed with a unidirectional full-load leveling force of 6000–9000 tons and a frame dynamic stiffness ≥16 MN/mm, achieving 200%–300% of current international advanced technical standards.
? Smart Leveling System Platform: Features a big data-driven, self-iterative, self-learning AI leveling system model, enabling "intelligent, unattended" fully automatic leveling.
? Agile Hydraulic Servo System: Equipped with constant roll gap dual closed-loop control, dynamic load matching, adaptive self-diagnostic functions, and safety protection.
Application Showcase

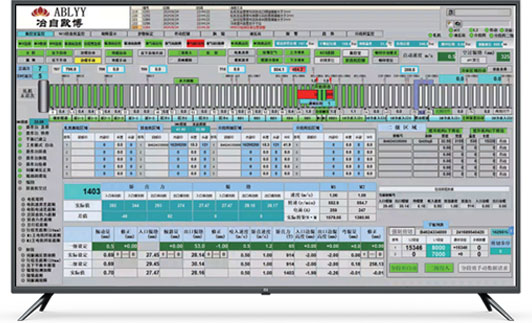

System Interface
Document Download
